`shipmates-diagram`

Draws a curated diagram — a flow/pipeline/state machine, or a sequence of actors and messages — as a committed SVG, a deterministic PNG, or an animated GIF, from a tiny JSON spec.

Shipmates: Render a curated diagram — a box-and-arrow flow, pipeline, or state machine, or a sequence/interaction with actors and message arrows — from a small JSON spec, as a committed SVG, a deterministic PNG, or an animated GIF. No browser, no mermaid runtime, no headless renderer; the SVG is assembled as text and the PNG/GIF are repainted from the same primitives. Reach for this whenever a task calls for a diagram to explain a design, pipeline, request path, state machine, or interaction in a README or docs page rather than describing it in prose or leaving a mermaid block for something else to render. Never a slash command; the crew reach for it implicitly when the intent calls for one.

What it does

diagram turns a small JSON spec into a clean, theme-exact diagram in whichever form the doc needs: a self-contained SVG assembled as text (no browser, no mermaid runtime, no headless renderer), a deterministic PNG repainted from the same primitives, or a tasteful animated GIF. The SVG path is pure standard library; PNG and GIF provision Pillow for themselves the first time they run, and raster text uses an embedded font so it is identical on every host. Every form is byte-for-byte deterministic — the same spec always produces the same file — so the output is safe to commit next to the docs it illustrates.

It is the evolution of the older svgflow tool (now a deprecated alias that forwards here). A flow diagram — the default — lays nodes out in a column ("direction": "down") or row ("direction": "right"), each box sized to its label, with straight spine arrows and side-bowed skips, back-edges, and self-loops. A sequence diagram draws actors across the top with dashed lifelines and directional message arrows. The builder is chosen by an explicit kind, or routed from a prompt/intent string through a plain keyword map — no model call. It is a tool, not a command: the crew reach for it on their own when the natural artifact of a task is a diagram of how the pieces connect or talk — a CI pipeline, a request path, a state machine, a service interaction — instead of a paragraph of prose or a mermaid block something else has to render. It draws a curated set of hand-laid types — there is no automatic graph layout — and the PNG is a faithful re-render of the same spec, not a pixel copy of the SVG.

Examples

A few things shipmates-diagram can produce, each from a small spec of its own. If you've set prefers-reduced-motion, any animation shows its final frame instead.

A vertical flow diagram titled 'CI pipeline': Build, Test and Deploy boxes joined by downward terracotta arrows labelled 'on push' and 'green', with a back-edge from Test to Build labelled 'red → retry'. — A CI pipeline as a column of boxes — build to deploy, with a labelled retry edge looping back on failure. The default `flow` kind, as SVG.

A sequence diagram titled 'Checkout — request path': Client, API, Payments and DB actors across the top, dashed lifelines dropping from each, and terracotta message arrows between them — POST /checkout, charge, a dashed 'ok' reply, save order, and a dashed '201 Created' reply. — A checkout request path as a sequence — actors, dashed lifelines, and directional message arrows with dashed replies. The `sequence` kind, as SVG.

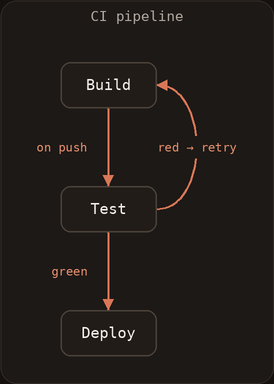

The 'CI pipeline' flow diagram animated: the terracotta arrows and arrowheads pulse brighter and back in a smooth loop. — The same pipeline as an animated GIF — a gentle accent pulse along the arrows, rendered deterministically from Pillow.

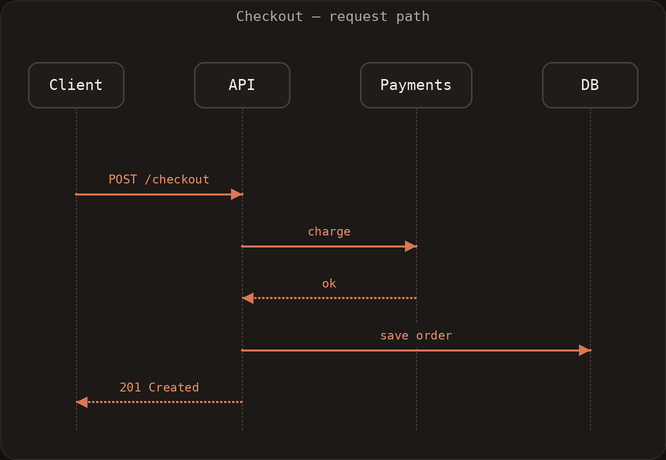

A PNG re-render of the 'Checkout — request path' sequence diagram: the same actors, dashed lifelines, and message arrows as the SVG, rasterized with the embedded font. — The sequence diagram as a PNG — a faithful, deterministic re-render of the same spec through the Pillow painter.

How the crew reach for it

Tools ship with a plain install; refresh one with shipmates install --harness <name> --with-tools diagram. Use --with-tools none for crew-only. Once installed it sits alongside the crew as a capability they invoke implicitly; there is no slash command to type.

The renderer and its instructions are bundled together, so wherever the tool lands the agent has both the diagram.py script and the spec format it needs to drive it — python3 diagram.py --spec spec.json --out flow.svg for SVG, or --out flow.png / --out flow.gif for a deterministic raster. The format is inferred from the extension, or set with --format; --provision places the raster dependency ahead of time.

Reference

Name: shipmates-diagram
Description: Shipmates: Render a curated diagram — a box-and-arrow flow, pipeline, or state machine, or a sequence/interaction with actors and message arrows — from a small JSON spec, as a committed SVG, a deterministic PNG, or an animated GIF. No browser, no mermaid runtime, no headless renderer; the SVG is assembled as text and the PNG/GIF are repainted from the same primitives. Reach for this whenever a task calls for a diagram to explain a design, pipeline, request path, state machine, or interaction in a README or docs page rather than describing it in prose or leaving a mermaid block for something else to render. Never a slash command; the crew reach for it implicitly when the intent calls for one.
Bundled files: diagram.py
Install: shipmates install --harness <name> --with-tools shipmates-diagram

Where this lives

This page is generated from toolbox/shipmates-diagram/tool.md. Opt in at install with --with-tools shipmates-diagram and the installer copies the tool — instructions and bundled files — into the harness's skills tree.
